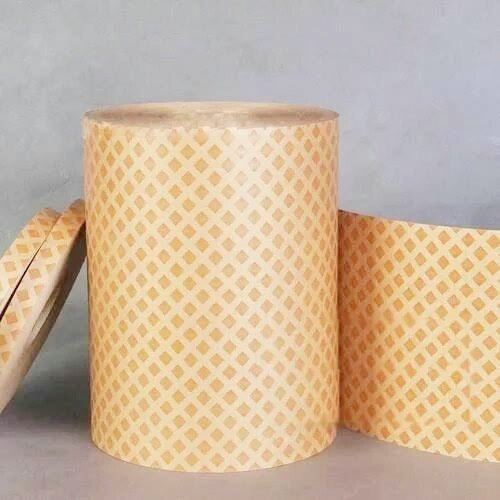

Premium Diamond Dotted Paper (DDP) for Transformer Insulation
Diamond Dotted Paper (DDP) is a premium electrical insulation material widely used in the manufacturing and repair of power and distribution transformers. It consists of high-quality electrical insulation paper coated with thermosetting epoxy resin dots arranged in a diamond pattern. During the transformer winding process, the resin dots bond adjacent insulation layers together when heated, creating a strong, stable winding structure with excellent mechanical and electrical properties.
At Star Group of Companies Caribbean, we supply premium-quality Diamond Dotted Paper (DDP) in Trinidad and Tobago, manufactured to provide superior dielectric strength, thermal endurance, and oil compatibility. Our DDP improves winding stability, reduces conductor movement during short circuits, and enhances the long-term reliability of transformer insulation systems.
Designed to meet international transformer industry standards, our Diamond Dotted Paper is suitable for transformer manufacturers, repair facilities, utility companies, and industrial applications throughout Trinidad and Tobago and the wider Caribbean.
Key Features
- High-quality electrical insulation paper
- Thermosetting epoxy resin diamond coating
- Excellent dielectric strength
- Superior bonding during heat curing
- High thermal endurance
- Excellent compatibility with transformer insulating oil
- Improves winding stability and mechanical strength
- Resistant to aging and electrical stress
- Manufactured to international IEC and transformer industry standards
Applications
- Power transformers
- Distribution transformers
- Transformer winding insulation
- Coil manufacturing
- Transformer refurbishment
- Transformer rewinding
- Oil-filled transformers
- Electrical insulation systems
- Utility substations
- Industrial transformer manufacturing
Technical Specifications
- Product Type: Diamond Dotted Paper (DDP)
- Material: Electrical-Grade Insulation Paper with Epoxy Resin Dots
- Application: Transformer Winding Insulation
- Insulation Class: Suitable for Oil-Immersed Transformers
- Operating Temperature: High Thermal Endurance
- Compatibility: Transformer Insulating Oil
- Supply Form: Rolls or Sheets (Model Dependent)
- Compliance: Manufactured to International IEC and Transformer Industry Standards
Benefits
- Improves transformer winding strength
- Prevents conductor movement under short-circuit conditions
- Enhances electrical insulation performance
- Increases transformer reliability and service life
- Provides excellent thermal and mechanical stability
- Simplifies transformer winding assembly
- Reduces maintenance and repair requirements
Why Choose Star Group of Companies Caribbean?
Star Group of Companies Caribbean is a trusted supplier of transformer insulation materials, electrical components, and power distribution products across Trinidad and Tobago and the Caribbean. Our Diamond Dotted Paper (DDP) is sourced from reputable manufacturers and produced to strict international quality standards, ensuring outstanding insulation performance, mechanical durability, and long-term reliability.
Our experienced team provides technical expertise, dependable product availability, and prompt delivery for transformer manufacturers, utility companies, EPC contractors, industrial facilities, substations, and transformer repair workshops throughout Trinidad and Tobago and the wider Caribbean.
Frequently Asked Questions (FAQs)
1. What is Diamond Dotted Paper (DDP)?
Diamond Dotted Paper (DDP) is an electrical insulation paper coated with epoxy resin dots that bond transformer winding layers together during the heat-curing process.
2. Why is DDP used in transformer manufacturing?
DDP improves winding stability, enhances dielectric performance, reduces conductor movement, and increases the mechanical strength of transformer coils.
3. Is Diamond Dotted Paper suitable for oil-filled transformers?
Yes. Diamond Dotted Paper is specifically designed for oil-immersed transformers and offers excellent compatibility with transformer insulating oil.
4. How does Diamond Dotted Paper improve transformer performance?
The epoxy resin dots create strong bonds between insulation layers, reducing vibration, improving short-circuit resistance, and extending transformer service life.
5. Does Star Group of Companies Caribbean supply Diamond Dotted Paper throughout Trinidad and Tobago?
Yes. Star Group of Companies Caribbean supplies premium-quality Diamond Dotted Paper (DDP) throughout Trinidad and Tobago and the wider Caribbean, providing reliable products, technical support, and prompt delivery for transformer manufacturing, maintenance, and electrical insulation projects.
